1. ZT310 Electric spray Ignition Coil (rubber cap)
|
|
|
|
|
|
|
|
2. ZT310-X Harness assembly
|
|
|
|
|
|
|
|
3. 0 level fire-retardant belting (black2.5×100)
|
|
|
|
|
|
|
|
4. Grade 0 flame retardant tie (black 3.6×295)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6. ZT250-R dump switch sleeve
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9. ZT310-R rectifier(Lithium)
|
|
|
|
|
|
|
|
10. GB6177.1M6 (environmental color)
|
|
|
|
|
|
|
|
11. ZT310 Electric seat lock
|
|
|
|
|
|
|
|
12. ZT310 electronic cushion lock block
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:This part stop selling,you can buy "1226400-269000 ZT368T-E electronic cushion lock block"and"1251100-102000 Non-standard bolt M6×16 (304 stainless steel)" instead.
|
|
|
|
13. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
14. ZT368T-E Electronic Cushion Lock Guide Block
|
|
|
|
|
|
|
|
15. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Note that the drain hole indicated by the arrow should be down or at a low positioon to avoid buzzer silencing dute to water accumulation.
|
|
|
|
17. Pin tie (Black 4.8×130)
|
|
|
|
|
|
|
|
18. ZT250-S fuel-injection relay
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: Model KH-1A4T-R.
|
|
|
|
19. ZT310-R relay of side support
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Model G8HN-1C4T-RJ.
|
|
|
|
20. ZT250-S fuze wire (15A)
|
|
|
|
|
|
|
Quantity
|
|
|
8
|
|
Remarks: KST brand medium 15A fuse.
|
|
|
|
|
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Medium 25A.
|
|
|
|
|
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: Medium 10A.
|
|
|
|
23. ZT310 univsersal fuse (10A small)
|
|
|
|
|
|
|
Quantity
|
|
|
8
|
|
Remarks: Small 10A.
|
|
|
|
24. ZT310 univsersal fuse (15A small)
|
|
|
|
|
|
|
Quantity
|
|
|
6
|
|
Remarks: Small 15A.
|
|
|
|
25. ZT310 univsersal fuse (25A small)
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks: Small 25A.
|
|
|
|
26. ZT310 main lock (electromagnetic drive/wire length 450) assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This is a new type of faucet lock. Please complain about the quality problem according to the faucet lock used in your motorcycles.If you chose the wrong part, engineer may ask you to refill the quality feedback form.Old models can use this model.
|
|
|
|
27. ZT310 PKE new version (band version )
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The old "ZT310 PKE Controller (Single Antenna)" for ZT250-R National IV and 310 series models can purchase this assmbly directly and the antenna uses the single antenna of the original car.If the original car is a "ZT310 PKE controller with dual antennas", it must be used with the purchase of "1184200-053000 ZT310PKE external single antenna".The battery type of the sensor key is Camelion CR1225.
|
|
|
|
28. Battery for key (CR1225)
|
|
|
|
|
|
|
|
29. ZT310 Induction Key (Bracelet Edition)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: If you can not purchase this sensor key , please consult your salesman for more details.
|
|
|
|
30. Bracelet key battery cover
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Only battery cover ,no other accessories. Only for small battery version of induction key.
|
|
|
|
31. ZT310 PKE Assembly (enlarge battery induction key)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The battery type of the sensor key is CR2032.
|
|
|
|
32. ZT310 Induction Key (Bracelet Edition-enlarge battery)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:If you need to purchase the sensor key , please consult your salesman for details.
|
|
|
|
33. Button battery (Camelion CR2032)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Just for the enlarge battery version PKE Induction Key .
|
|
|
|

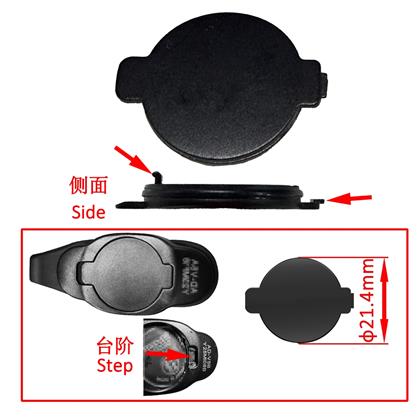

34. Bracelet key battery cover (enlarge battery)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:Only battery cover ,no other accessories. Only for big battery version of induction key.
|
|
|
|
35. ZT310 induction key rubber ring
|
|
|
|
|
|
|
|
