1. ZT310-T front disc main pump assembly(without rocker arm)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to purchase 2 pieces of "1251513-013000 disc brake tubing copper washer φ16×φ10×1.2"at the same time to avoid leakage.If you need to purchase this brake system accessory please contact your sales.Only DOT 4 brake fluid can be added,ZT310-V、ZT250-R/X/T/S(national three) total dosage is 0.170L，ZT310-R/X/T total dosage is 0.180L，KD/ZT-U/G/Z2 total dosage is 0.185L.
|
|
|
|
2. ZT250-R right hand rocker
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: This part has been discontinued, you need to purchase "1134100-032000 ZT250-R right handle rocker arm (machine plus)" to instead it.
|
|
|
|

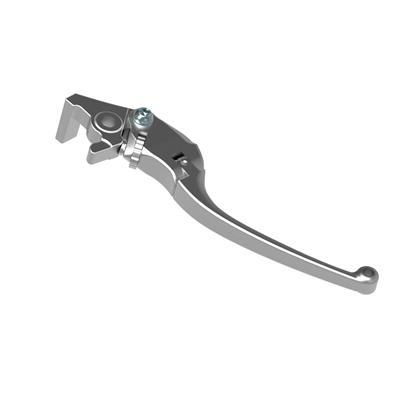

3. ZT250-R Right handle rocker (Machine)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Because the anodizing process is difficult to ensure that the consistent color for each batch, different products of different batches will have different color ,the colors does not affect normal use.When replacing the brake handle,be sure to remove the nut that comes with the main pump first, and then remove the bolt.Standard torque:8～10N.m.
|
|
|
|
4. ZT250-R right hand half cover
|
|
|
|
|
|
|
|
5. Non-standard bolt M6×25 (environmental color/10.9 grade)
|
|
|
|
|
|
|
|
6. ZT250-S right rearview mirror
|
|
|
|
|
|
|
|

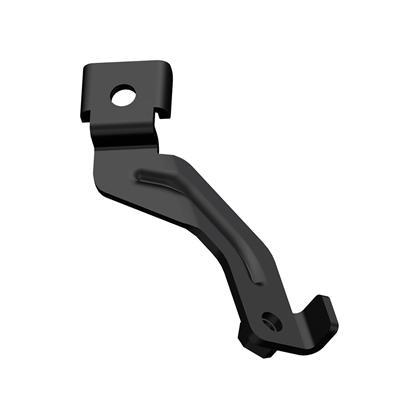

7. ZT250-R front disc brake tubing bracket No. 1
|
|
|
|
|
|
|
|
8. ZT250-R support of front disc brake oil pipe NO.2
|
|
|
|
|
|
|
|
9. M6×22 Hex flang bolt thread (8.8 garde/environmental color Zinc)
|
|
|
|
|
|
|
|
10. Non-standard bolt M8×37
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks:24N.m.
|
|
|
|
11. ZT250-S front disk brake piece(CM102)
|
|
|
|
|
|
|
|
12. Non-standard bolt M6×16 (304 stainless steel)
|
|
|
|
|
|
|
|
13. ZT250-R ABS hydraulic control unit protection cover
|
|
|
|
|
|
|
|

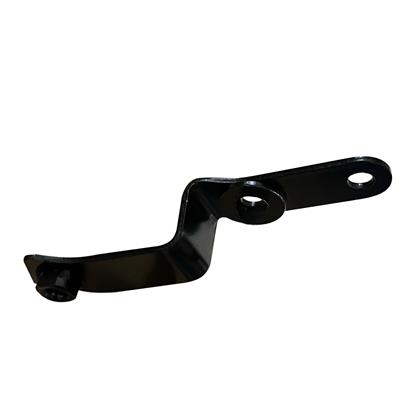

14. ZT250-R ABS mounting bracket
|
|
|
|
|
|
|
|
15. ZT250-S Flanging bushing buffer
|
|
|
|
|
|
|
|
16. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
|
|
|
|
|
|
|
|
17. Buffer rubber of flanging bushing (φ8.5×φ14×1)
|
|
|
|
|
|
|
|
18. Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20. ZT250-S rear disk brake pads (CM102)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: The back panel is engraved with the words “HT H10” and the print production serial number.
|
|
|
|
21. Fully synthetic brake oil DOT4 (1L bottle)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Note: Each bottle is 1 liter. It must be used in time after opening, and it is necessary to seal and prevent moisture during storage; it is recommended not to exceed one month. Inferior or damp brake oil can cause poor braking system and can cause brake failure if the impact is severe. Be sure to replace the brake fluid in a repair shop with brake fluid replacement equipment and technology to avoid air in the brake line.
|
|
|
|
22. ZT250-R rear disc brake pipe clamp (steel)
|
|
|
|
|
|
|
|
23. ZT310-R Rear disc brake pipe clamp
|
|
|
|
|
|
|
|
24. ZT250-R support of rear disc brake transparent oil cup
|
|
|
|
|
|
|
|
25. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5
|
|
|
|
|
|
|
|
26. Disc brake pipe bolt M10×1-22
|
|
|
|
|
|
|
Quantity
|
|
|
3
|
|
Remarks:The standard torque for disc brake tube is 32N.m.
|
|
|
|
27. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
28. ZT250-S front disc brake caliper mounting plate (73 type)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Only the mounting plate.No calipers, brake pads,etc.
|
|
|
|
29. ZT310-R rear disc brake caliper mounting plate
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Only the mounting plate.No contain calipers, brake pads,etc.
|
|
|
|
30. ZT310-T front disc brake cassette brake switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remark: Only the brake switch of the front brake main pump, it does not contain other accessories.
|
|
|
|
31. DF30 wheel speed sensor(deactivated)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remarks: White coded "1184200-045000" is printed on the head with bosses and stiffeners.You can purchase the new model "1181200-118000 Wheel Speed Sensor(A)" to replace it.
|
|
|
|
32. Wheel speed sensor(A)
|
|
|
|
|
|
|
Quantity
|
|
|
2
|
|
Remaks:For the 703RR model for the front wheel, the other models such as the number of 2 for the front and rear wheel.
|
|
|
|
33. Wheel speed sensor clamp
|
|
|
|
|
|
|
|

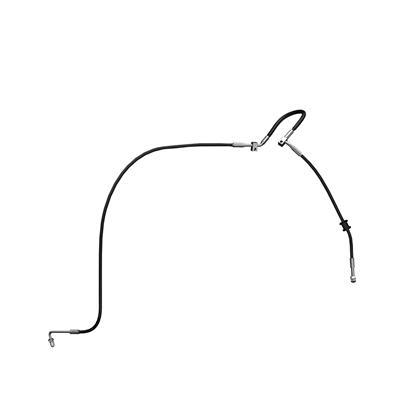

34. ZT250-R brake hose FMC-HU segment
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Connect the front brake upper pump to the control unit.It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. If you need to purchase this brake system accessory please contact your sales. Only DOT 4 brake fluid can be added,total dosage is 0.17L.
|
|
|
|
35. ZT250-R brake hose FC-HU segment
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Connect the front brake caliper to the control unit.It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. If you need to purchase this brake system accessory please contact your sales. Only DOT 4 brake fluid can be added,total dosage is 0.17L.
|
|
|
|

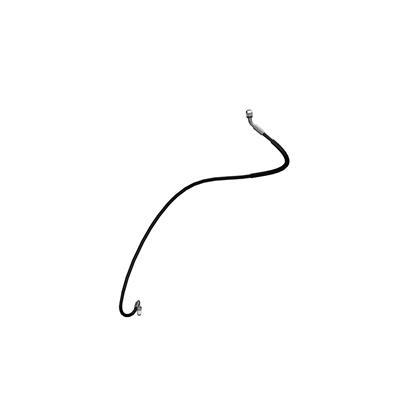

36. ZT250-R brake hose RMC-HU segment
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. If you need to purchase this brake system accessory please contact your sales. Only DOT 4 brake fluid can be added,total dosage is 0.17L.
|
|
|
|
37. ZT250-R brake hose RC-HU segment
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Connect the rear brake main pump to the control unit.It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. If you need to purchase this brake system accessory please contact your sales. Only DOT 4 brake fluid can be added,total dosage is 0.17L.
|
|
|
|
38. ZT250-S Front disc brake caliper assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. Only DOT 4 brake fluid can be added. The old plug is removed with a flathead screwdriver, and the new one uses a 5# hexagon corner, and the old and new models are interchangeable.
|
|
|
|

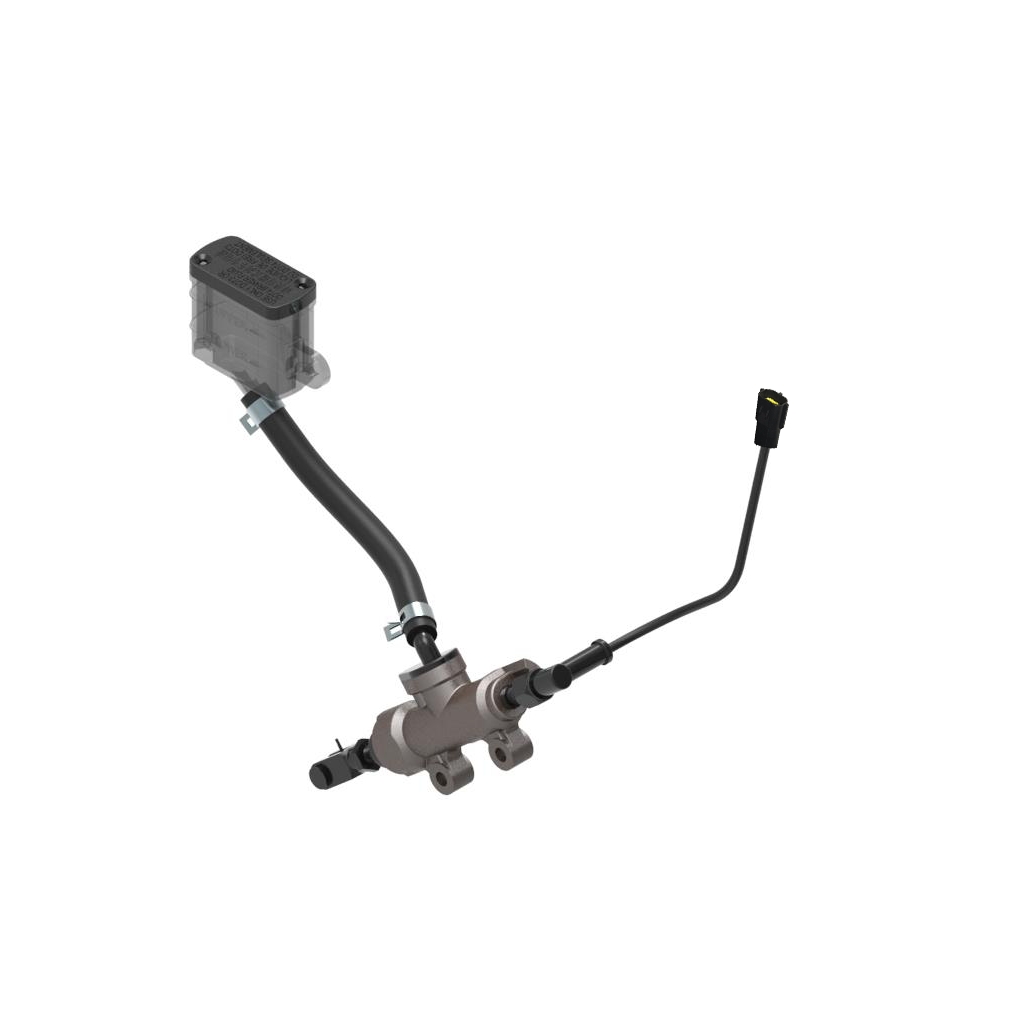

39. ZT250-R rear disc brake main pump assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Connect the front brake caliper to the control unit. It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid.Please confirm that you have the ability to install it by yourself. If you need to purchase this brake system accessory please contact your sales.Only DOT 4 brake fluid can be added,total dosage is 0.17L.
|
|
|
|
40. ZT310-R Rear disc brake caliper assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: It is recommended to buy 2 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5" at the same time to prevent leakage of brake fluid. Only DOT 4 brake fluid can be added. The old plug is removed with a flathead screwdriver, and the new one uses a 5# hexagon corner, and the old and new models are interchangeable.
|
|
|
|
41. ZT310 hydraulic control unit (wet type)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The ZT-U/G1/Z2 recommended to buy 8 pieces of "1251513-013000 disc brake tubing copper washers φ15 × φ10.2 × 1.5 "at the same time to prevent leakage of brake fluid.If you need to purchase this brake system accessory please contact your sales.Only DOT 4 brake fluid can be added,ZT/KD-310R/X/Ttotal dosage is 0.18L,ZT/KD-310V/VX、250S-ABS/250-S (national three)/R is 0.17L，KD/ZT-U/G1/Z2 is 0.185L，ZT310/125T-M is 0.215L.
|
|
|
|
42. ZT250-R rear disc brake hydraulic brake switch
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:It is recommended to purchase 2 pieces of 1251513-013000 disc brake tubing copper washers φ15×φ10.2×1.5 at the same time to prevent leakage of brake fluid.Please confirm that you have the ability to install it by yourself, and you need to provide the original frame code and engine code before passing the order.
|
|
|
|
