1. ZT310-T black front vacuum spoke wheel (3.0×17/ 11.5)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: ZT310 independent valve is included. Oil seal TCφ42×φ28×7;bearing size φ42×φ20×12；bearing model: 6004-2RS.
|
|
|
|
|
|
|
|
|
|
|
|
|

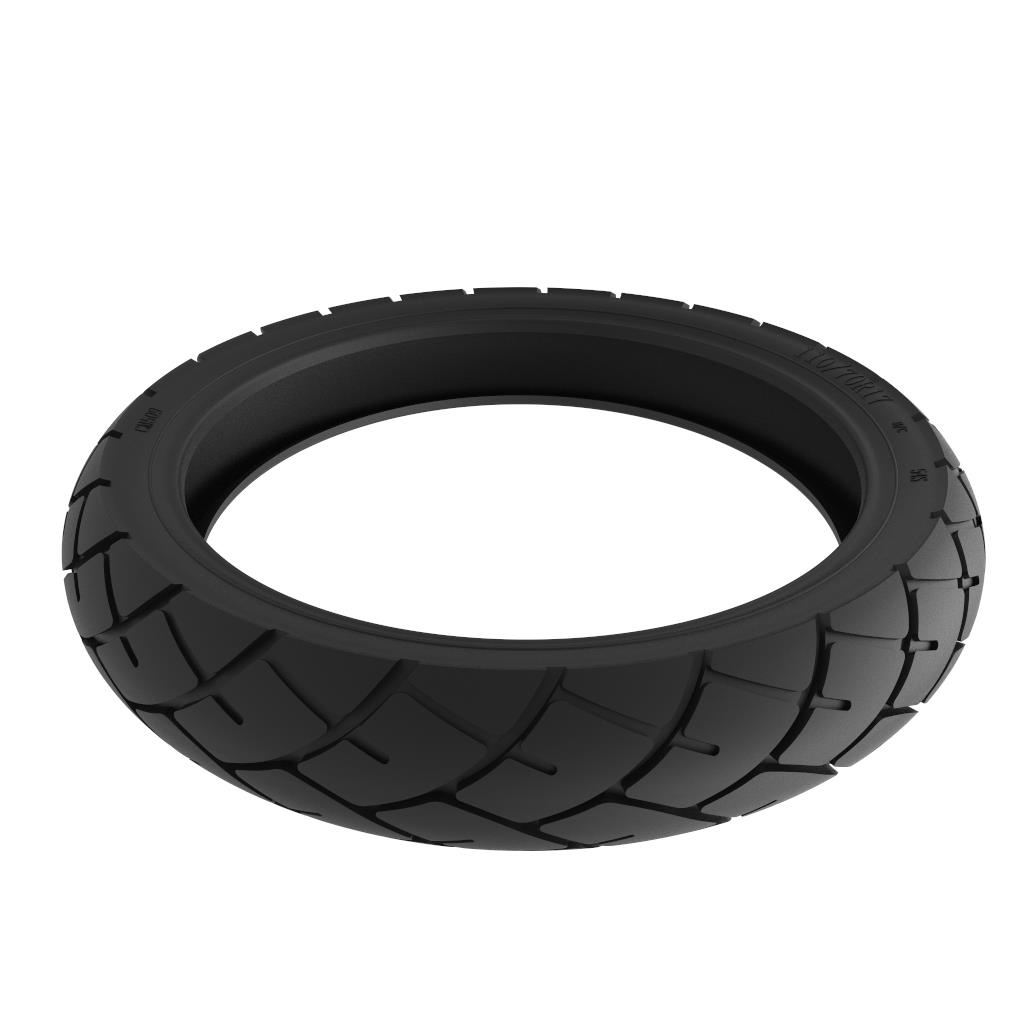

3. 110/70R17 CM509 54S environmental protection tubeless tire (deactivated)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:The Euro IV certificates of ZT310-T/ T1 and T 19 inch spoke wheels only have old tires, so you can't buy new tires with imark logo, and the old tires will not be transferred after production. Iran and other non Euro IV certified vehicles can be purchased, and other models can be purchased. It is recommended that the customer confirm the certificate before placing an order to avoid wrong purchase.
|
|
|
|
4. 110/70R17 CM509 54S TL E4 IMARK
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks:only for China Ⅳ and Euro Ⅴ.The Euro IV certificates of ZT310-T/ T1 and T 19 inch spoke wheels only have old tires, so you can''''''''''''''''t buy new tires with imark logo, and the old tires will not be transferred after production. Iran and other non Euro IV certified vehicles can be purchased, and other models can be purchased. It is recommended that the customer confirm the certificate before placing an order to avoid wrong purchase.
|
|
|
|
5. ZT310-R1 front brake disc (300×5.0)
|
|
|
|
|
|
|
|
6. Non-standard inner hex bolt M8×25 (environmental color)
|
|
|
|
|
|
|
Quantity
|
|
|
10
|
|
Remarks: If used in brake discs thread fastening glue should be applied to prevent loosening. Standard torque is 24N.m.
|
|
|
|
7. ABS induction ring gear (40 teeth)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please confirm the status before purchase.
|
|
|
|
8. ABS induction ring (60 teeth)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please confirm the status before purchase.
|
|
|
|
9. DF30 wheel speed sensor(deactivated)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: White coded "1184200-045000" is printed on the head with bosses and stiffeners.You can purchase the new model "1181200-118000 Wheel Speed Sensor(A)" to replace it.
|
|
|
|
10. Wheel speed sensor(A)
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remaks:For the 703RR model for the front wheel, the other models such as the number of 2 for the front and rear wheel.
|
|
|
|
11. Non-standard bolt M6×12 (304 stainless steel)
|
|
|
|
|
|
|
|
12. ZT310-T front wheel WSS wire clip
|
|
|
|
|
|
|
|
13. Wheel speed sensor clamp
|
|
|
|
|
|
|
|
14. 0 level fire-retardant belting (black2.5×100)
|
|
|
|
|
|
|
|
15. ZT310-T Vacuum spoke wheel valve， valve cap assembly
|
|
|
|
|
|
|
Quantity
|
|
|
1
|
|
Remarks: Please confirm whether it is consistent with the picture before purchasing, otherwise please do not buy.
|
|
|
|
16. ZT310-T vacuum spoke wheel nut
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:T30 plum hexagon wrench is reqiured.
|
|
|
|
17. ZT310－T Vacuum spoke wheel female set screw M4
|
|
|
|
|
|
|
Quantity
|
|
|
40
|
|
Remarks:2# inner hexagon wrench is reqiured.
|
|
|
|
18. ZT310-T vacuum spoke wheel spokes (L=187.6)
|
|
|
|
|
|
|
Quantity
|
|
|
20
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
19. ZT310-T vacuum spoke wheel spokes (L=175.6)
|
|
|
|
|
|
|
Quantity
|
|
|
20
|
|
Remarks: Rotate the spoke wheel to the position indicated by the arrow and observe the direction of the spokes. The spokes with the same direction or color are the same specifications.The color shown is only used to distinguish the spoke length,not the actual color.
|
|
|
|
20. Oil seal TC φ28×φ42×7
|
|
|
|
|
|
|
|
21. GB276 Deep groove ball bearing 6004-2RS-C3
|
|
|
|
|
|
|
|
