Multi-angle Exhibition
Technical Data
Whole motorcycle   Power system   Suspension system
Length (mm) 2080 The body Aluminum alloy Frame system Iron pipe frame
Width (mm) 850 Cylinder number Single cylinder  Tire structure Radial tire
Height (mm) 1320 Camshaft system Double-top camshaft(DOHC) Front rim size MT:3.0×17; MT:2.5×19
Wheelbase (mm) 1394 Bore X Stoke (mm) 80 x 62 Rear rim size MT:4.5×17
Loading capacity(kg) 165 Cooling system Water cooling Front tire size;Pressure 110/70R17;54S 250Kpa
110/80R19;59S or 59V 250Kpa
Curb weight(kg) 193 Fuel 95 and above Rear tire size;Pressure 160/60R17;69S or 69H 250Kpa
Ground clearance (mm) 168 Compression ratio 12.5:1 Front brake size Disk brake
Fuel tank volume (L) 19 Displacement(ml) 312 Rear brake size Disk brake
Seat height (mm) 830/795 Fuel supply system Fuel injection Headlight/taillight/turning signal light LED
    Fuel injection system BOSCH Brake system Dual channel ABS
    Ignition system Electric ignition Battery 12.8V-10Ah
    Transmission system Oil sealing chain Homologation Euro 5
    Idling speed (r/min) 1600 ± 100
    Maximum power (kW/rpm) 26 / 9500
    Maximum torque (N.m/rpm) 30 / 7500
    Transmission Constant mesh 6-section transmission
    Gear International gear
    Clutch Wet type multi-pieces
    Economical consumption of fuel (L/km) 3.2 /100

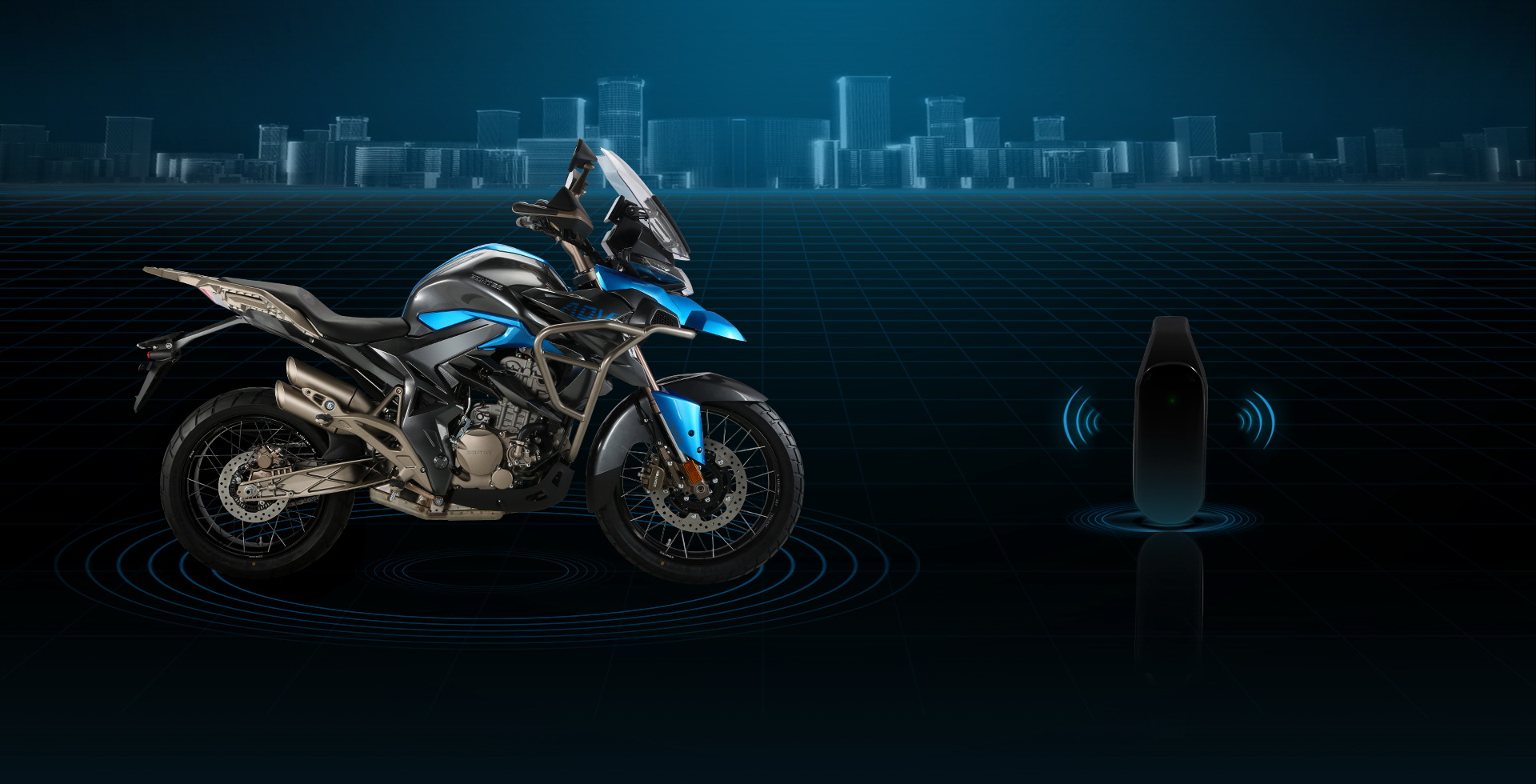

Second-generation keyless control system
The second-generation keyless control system adopts advanced encryption technology, has good security performance, and the new designed induction key is smaller and exquisite (The key can be place in a strap or band such as Mi Smart Band 3 or others with the same size). Carrying the induction key, it can be unlocked within 1.5 meters(the transponder is placed in a backpack or a pocket, you don’t need to take it out). It is also the same as leaving.It is easier, simpler and more convenient way of unlocking the key,which give you a cooler experience. The second-generation key also has a built-in chip sensor. Even if the battery is unplugged or completely empty, as long as the key is close to the lower right of the seat, it can unlock the motorcycle.
TFT full color LCD screen instrument
Full virtual TFT full color LCD screen instrument has four personalized theme interfaces. It has two modes of manual and automatic backlight, which can adjust the backlight intensity freely according to the change of light and dark of the environment. It has quick response and is convenient and efficient.

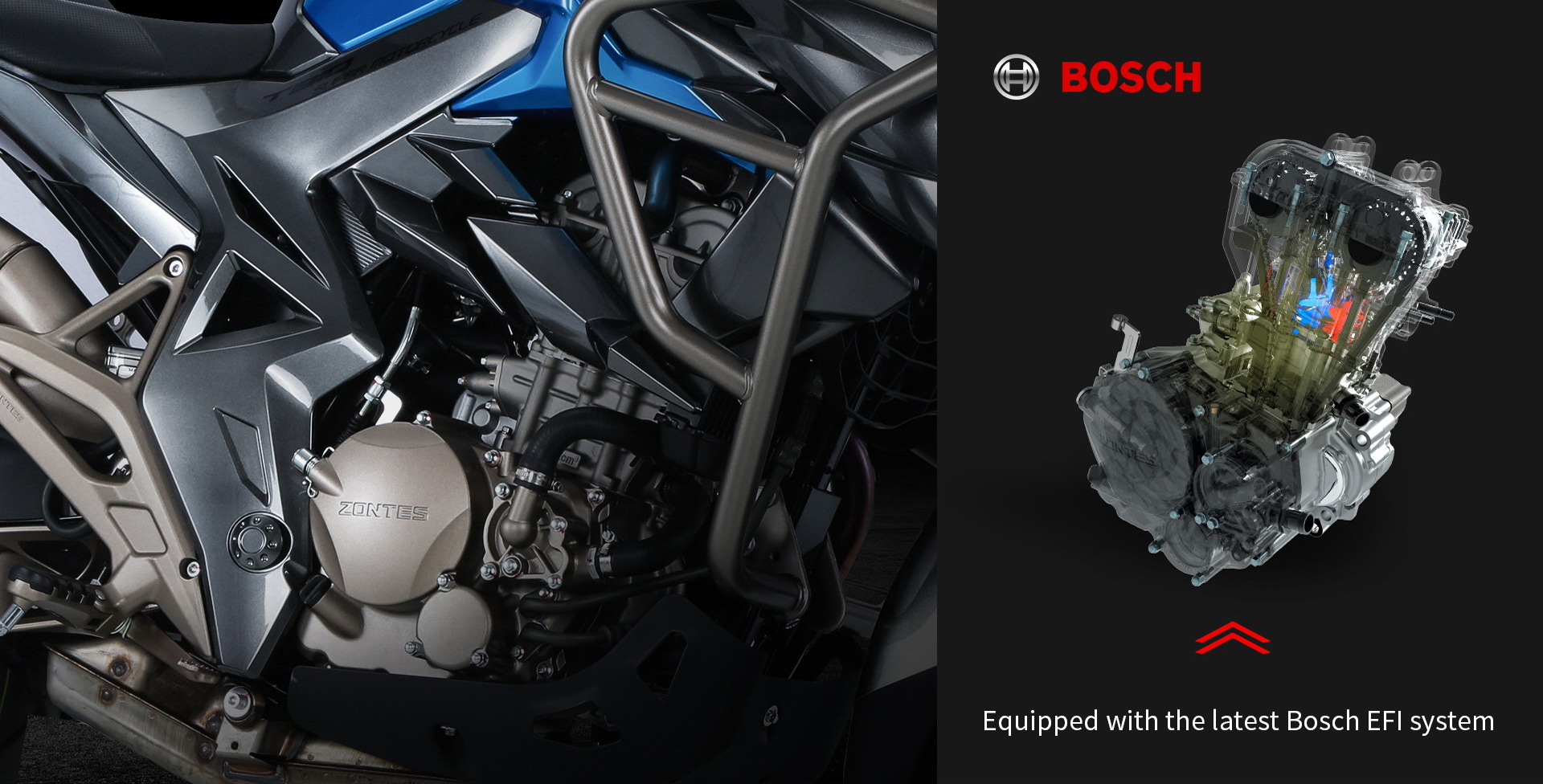

BOSCH EFI system
The latest Bosch EFI system integrates functions such as headlight control, fan control, and sports & fuel-saving mode, which is equivalent to a comprehensive optimization of thefuel economy and operating quality.
High power magneto
The power generation of high-power magneto is increased; the temperature rise is reduced and the service life is longer; the weight of the magneto rotor is reduced, which further improves the engine vibration and power output; the battery matched with the high-power magneto has greater storage capacity.
10AH gel battery
Large capacity and good at low temperature performance.

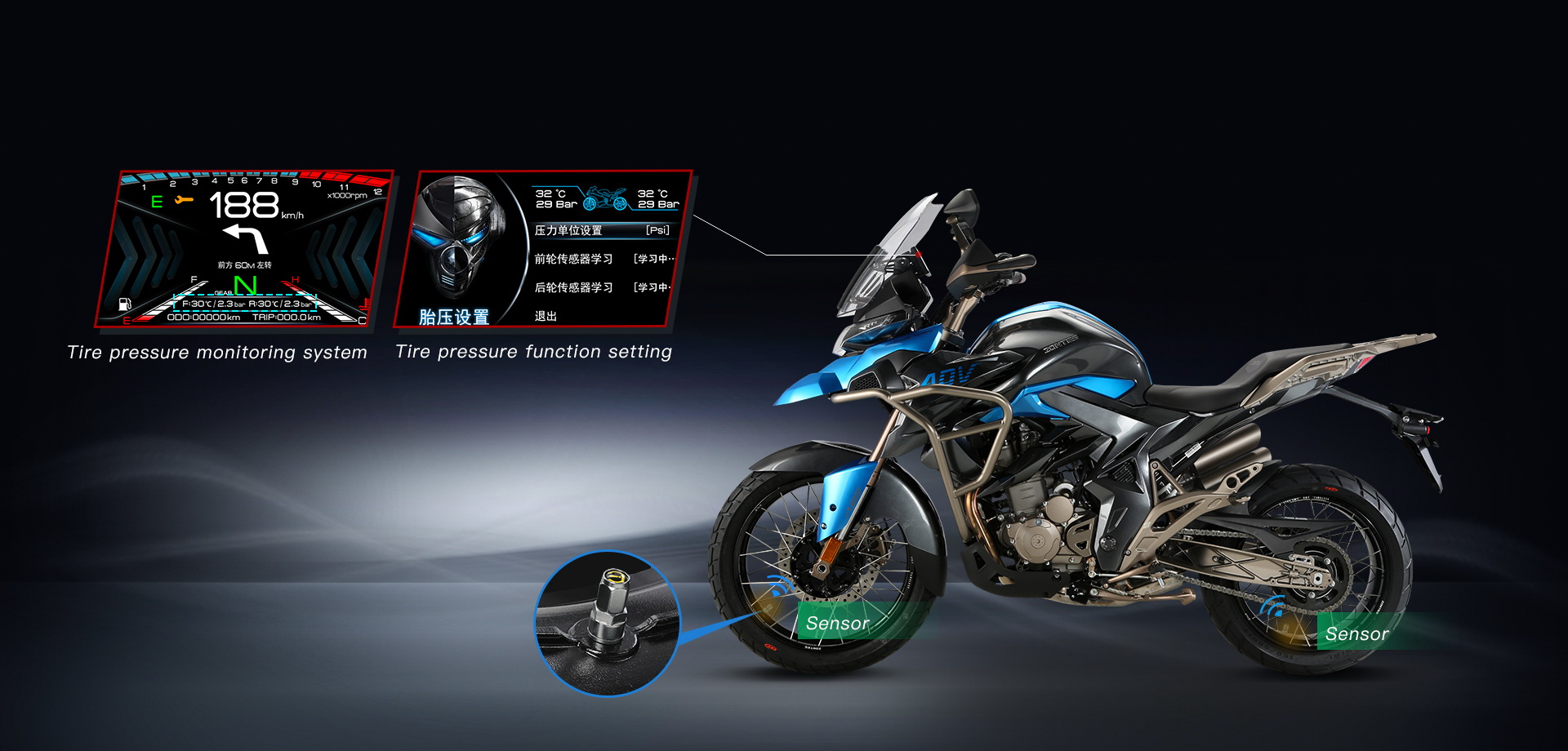

Tire pressure monitoring system
Adopt German imported chips to achieve high-precision monitoring. When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.
Dual fast charging USB ports
The USB charger (fast charging version) provides two USB output ports that support QC3.0 fast chargingprotocol for riders. During fast charging, the output power of a single port can reach 18W. The shell is made of high temperature flame retardant material, built-in high-precision hardware current limiting chip, which can ensure that each ports works within the safe current range, effectively preventing the occurrence of output overcurrent, input overvoltage, output short circuit, etc., greatly improving safety.
Second-generation stearing lock
The second-generation stearing lock has a more compact driving mechanism, better shock resistance and sealing performance, automotive levelelectronic materials, scientific algorithms, quicker action, safer and more reliable.
Second-generation handlebar switch and auxiliary handlebar switch
Brand new design, the turn signal is restored to the structure of automatically centering by pressing the turn signal button, cool backlight display, reliable performance. The new designed internal structure of the auxiliary switch improves the waterproof level to IP67, and the waterproof performance is more stable.
New seat cushion leather pattern
The new foam materialis very soft, and at the same time, it is re-matched with higher-grade leather, which is to increase the friction between the clothing fabric and the seat cushion.A new convex-shaped leather pattern is designed to achieve that the body is not easy to move back and forth during acceleration and braking Shift, long-distance travel is as soft and shock-absorbing as a sofa.
Three-dimensional fuel tank logo
The Zontes three-dimensional fuel tank label specially made of soft metal material is more high-end and eye-catching than the original paper decals. The 310T2 has a new pearl white color,which allow owners who pursue personalization to have a wider choice.
New designed hand guard
The new hand guard has a larger area, combined with the new aluminum alloy forged bracket, the windshield effect is much better.
Addition of rear fender bracket
The new aluminum alloy rear fender bracket is added to effectively block the muddy water thrown up by the rear wheel, making rainy riding more enjoyable.
Widened and heightened electric windshield
Widened and heightened electric windshield conforms to the principle of aerodynamics, effectively reducing the face-to-face wind and allowing the wind to blow over the head; the fully exposed aluminium alloy rocker arm highlights the mechanical aesthetics.
Thoughtful card box design
The ingeniously designed card box which can be opened and closed by pressing is very convenient to use and is more thoughtful.
Integral aluminum alloy rack
The sturdy integral aluminum alloy rack, which is designed with a very strong loading capacity, is a powerful tool for long-distance motorcycle travel.
Pure-aluminum cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

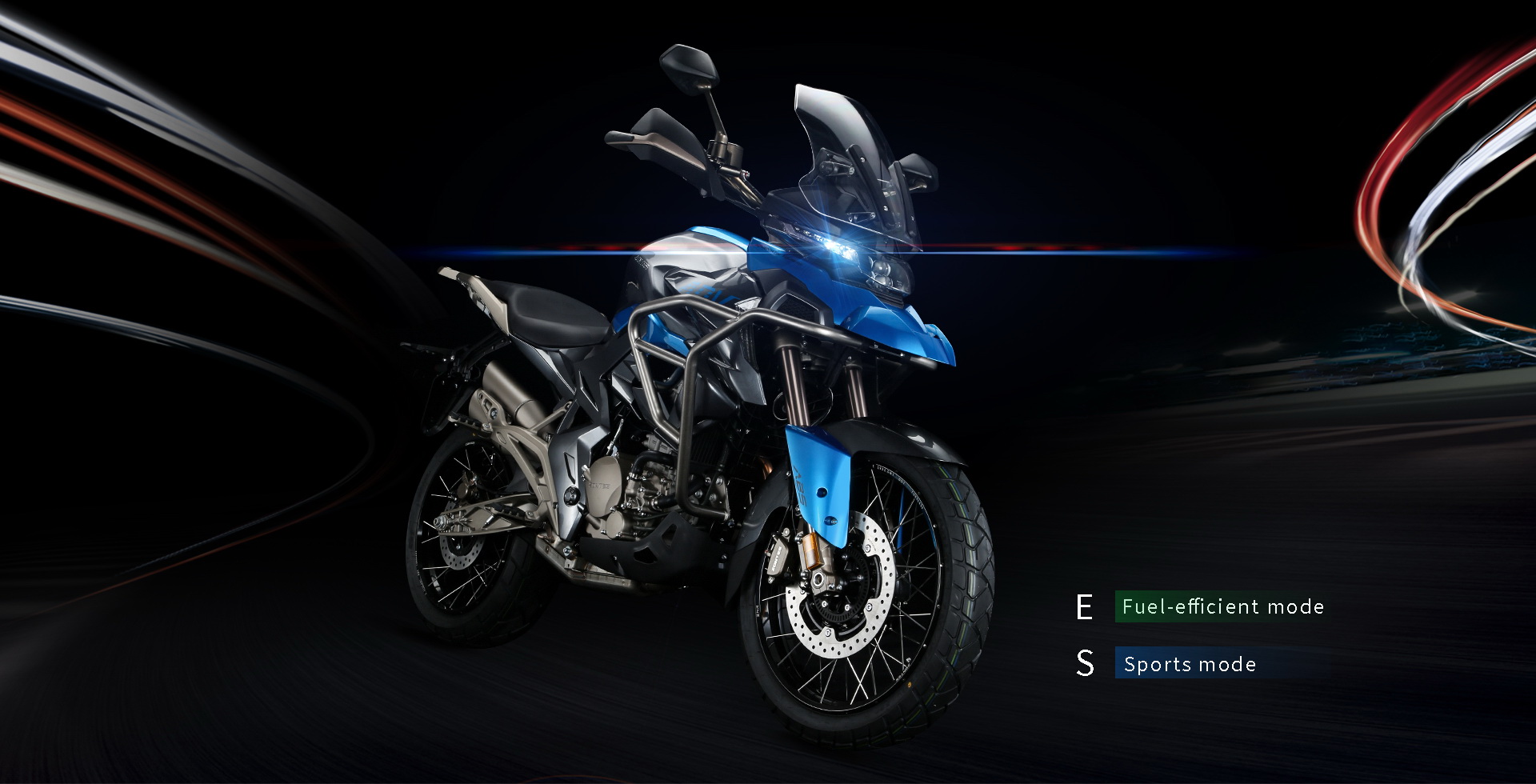

Fuel-saving and sporting dual mode
The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities. In the fuel-efficient mode, the system will automatically switch to the sport mode as long as the engine speed is increased to 7,000rpm if the cyclist needs to overtake under emergency.
Sharp motorcycle headlight
When the distance light is shining, the dipped headlight shines at the same time. The whole car is equipped with LED light and the ferocious daylights make people alert in the far distance.

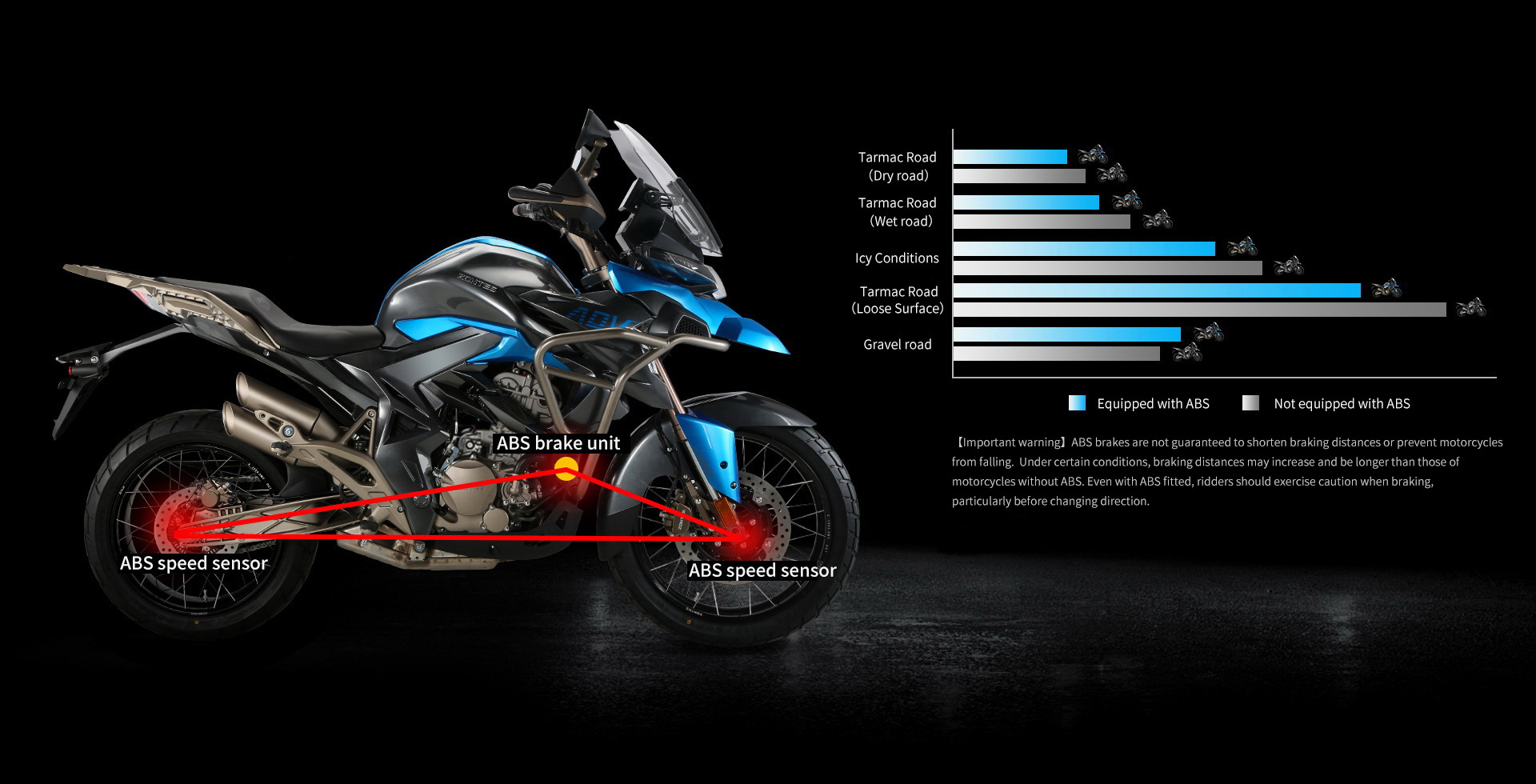

Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.
Vacuum wire spoke rim
The spinning forming rim makes the overall weight of the rim lighter and stronger, with better impact resistance, so as to adapt to different road conditions. The moment of inertia of the rim is smaller, and the speed of the motorcycle is increased rapidly. The side-pull spoke arrangement makes the motorcycle more high-end.
anti-scald exhaust pipe
The stainless steel outer barrel and the ingenious internal heat insulation design prevent the exhaust pipe from burning when driving for a long time and allow the back seat passenger to feel at ease when placing the feet close to the baffle.
Aluminum alloy rear fork
The special process of integrated molding is originated from the Tayo company's independent casting. Through the combination of materials and casting process, the flexibility of aluminum alloy is close to the steel pipe, which will not be broke when bending and twisting, giving full play to the characteristics of lightweight and good rigidity of the aluminum alloy.
Gasoline tank with galvanized liner
Eliminate the clogging of intake filter pulp and the leakage of gasoline tank due to rust.
LED tail light
Simple rear lights, the shape fits the style of the motorcycle, and the LED is more eye-catching.
High-strength internal circulation oil-cooling frame
The frame tube is used as the engine oil cooler and the heat of the tube wall is carried away by the head-on air flow. Cracks are not allowed even when the frame is impacted. Otherwise, engine oil will be leaked, which indicates the high requirements for the strength and the tightness of the welding.
Increase disc brake plate
Provide more powerful braking force, more stronger linear braking sense.
Integral bumper
The overbearing bolted steel pipe bumper is equipped with a strong protective capacity.
Central nitrogen rear shock absorber
The design of built-in air bag filled with high pressure nitrogen is adopted for the central rear shock absorber to reduce the hydraulic oil temperature; it can provide greater restoring damping force during cycling at high speed, and the high-pressure nitrogen in the air bag can also change the air spring characteristics inside the shock absorber. The overall design is comfort-oriented, the spring preload is small, and the movement stroke is increased; improve the cycling comfort and the feeling of fatigue during long-distance travel.
High compression ratio engine
The ZT310T2 engine has a high compression ratio of 12.5:1, and a low fuel consumption can get a 26KW, 30N. M power output. As the development trend of the advanced technology of internal combustion engine in the world, high compression ratio engine is characterized by fuel-saving, environmental protection and high performance. In order to successfully use high compression ratio technology, it is necessary to overcome the technical difficulties in engine material, molding process, structural design and other aspects that are different from the ordinary engines.
Sliding clutch
It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.
ZONTES Intelligence
ZONTES Intelligent APP, together with TFT instrument, realizes Bluetooth connection of mobile phone, upgrades new functions, displays instrument interface and content synchronously, and also reduces navigation information in instrument center. More interesting features will be developed in the future to enhance driver's pleasure.
